Edge ML — splitting an autoencoder between a device and the cloud

Trained a compatible encoder/decoder pair, deployed the encoder toward embedded inference, and connected encoded sensor payloads to a Flask decoder on AWS EC2.

Edge ML prototype

View source ↗All projects ↗

Role: Embedded ML and cloud engineer
Published: November 2025
Focus: Edge ML prototype
Engineer: Saaim Abdullah

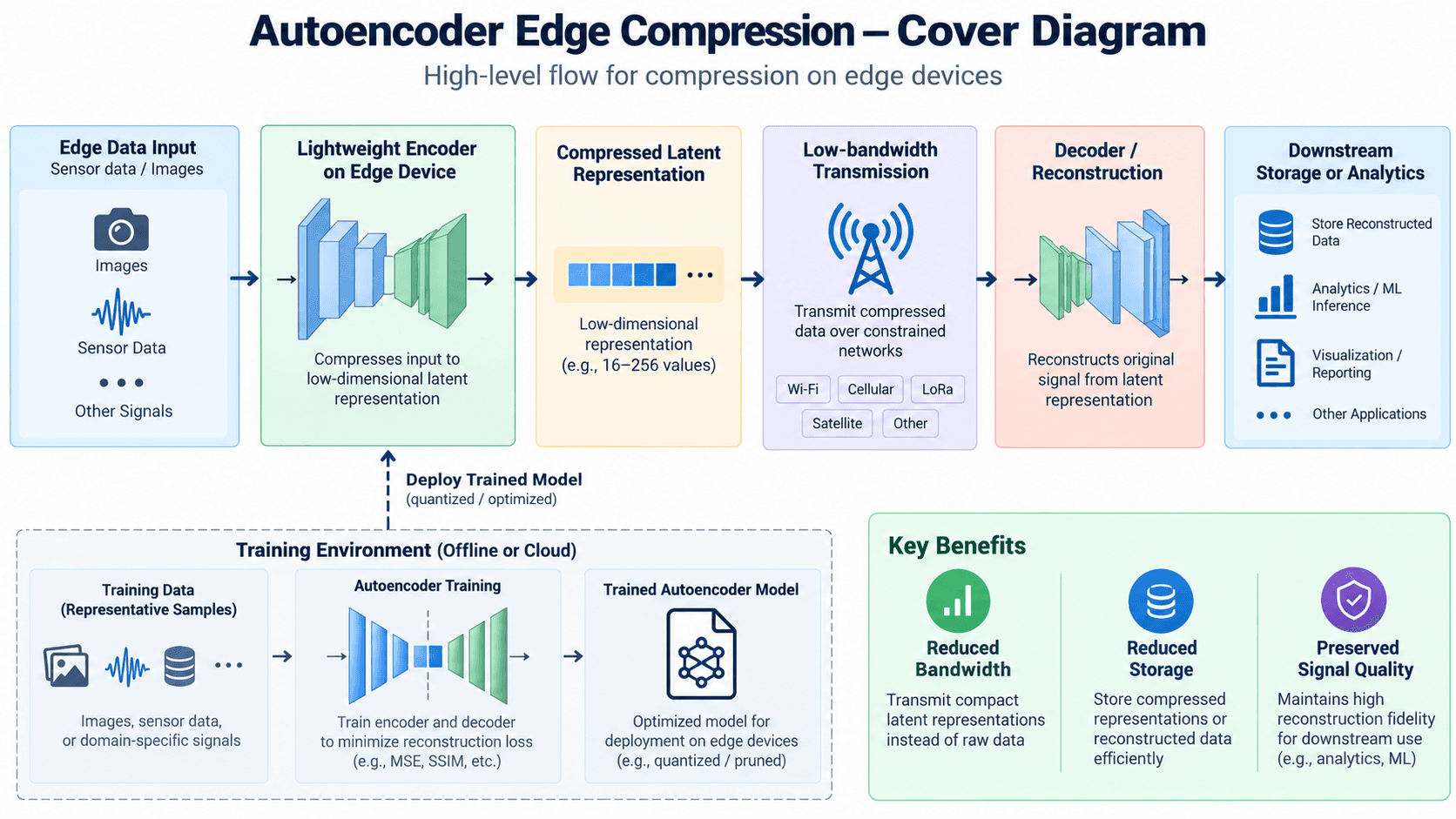

Edge ML — splitting an autoencoder between a device and the cloud system overview

The design question: what belongs on a constrained device?

Embedded devices are not smaller laptops. Their memory budgets, compute characteristics, wireless links, and firmware deployment model force architectural decisions that a server-side ML engineer can often ignore. I built this project to explore a split autoencoder: encode a sensor reading close to its source and reconstruct that representation on a cloud service. My responsibility spanned both halves of the system: model development in Python/TensorFlow, conversion for TensorFlow Lite Micro, ESP32-side integration, a Flask decoder running on AWS EC2, and S3 integration for encoded payload artifacts. The important achievement is creating a connected edge-to-cloud inference contract—not making an unsupported claim that every autoencoder reduces energy or encrypts data.

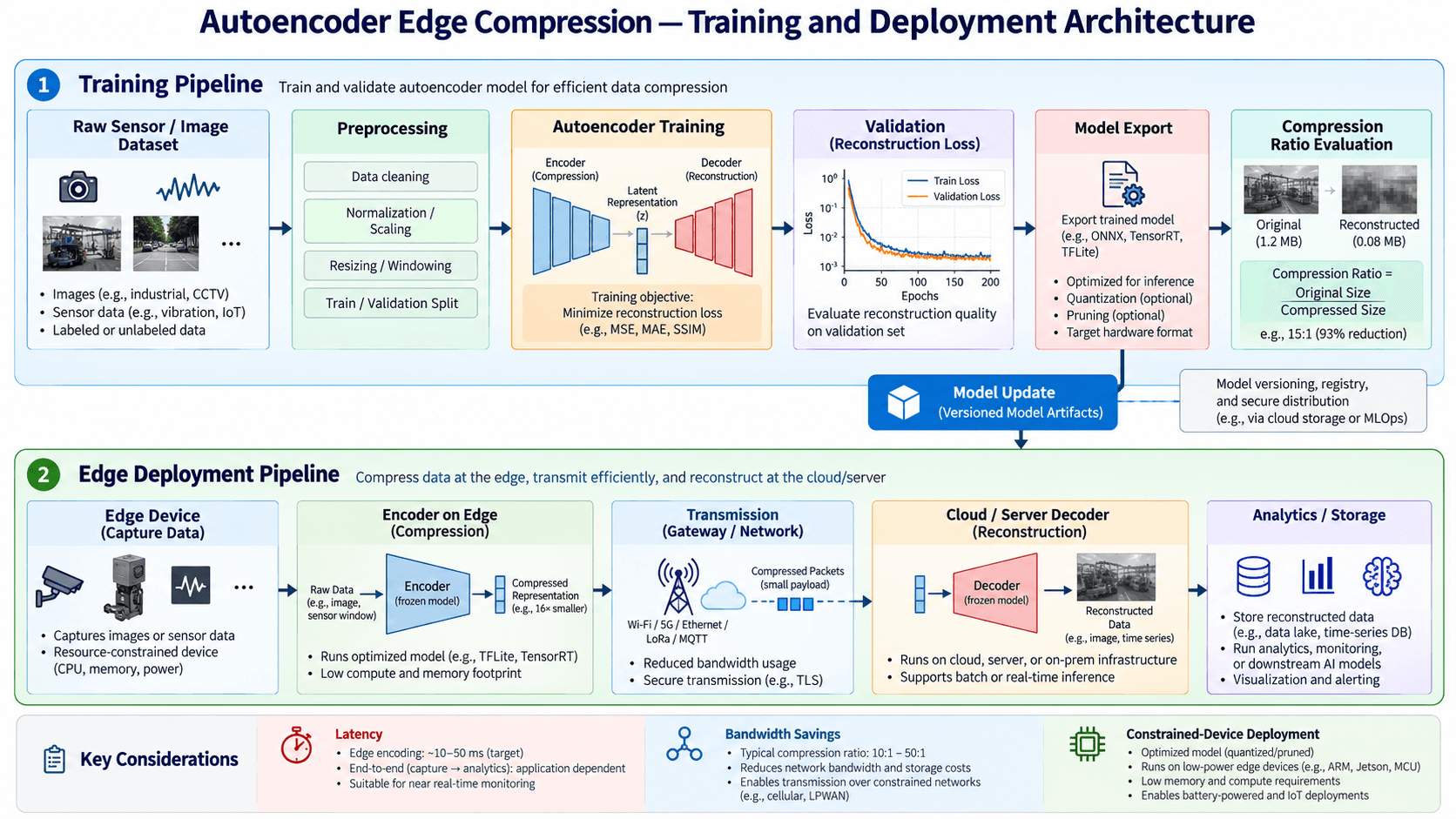

Architecture, in five accountable stages

Stage	Runtime	Input → output	Contract I had to manage
1. Train	Python / TensorFlow	Sensor features → trained encoder + decoder	Data scaling, model compatibility
2. Export	TFLite / embedded build	Encoder model → device-compatible artifact	Supported operators, tensor shapes
3. Encode	ESP32 / TFLite Micro	Scaled sensor values → latent vector	RAM arena, expected numerical ranges
4. Transmit	Device/network boundary	Latent vector → request payload	Serialization overhead, loss, retries
5. Decode	Flask / EC2 + S3 integration	Latent vector → reconstructed value/artifact	Matching decoder version and inverse preprocessing

These five stages are verifiable parts of the architectural workflow; they are not five independent production services.

The most important engineering principle: a model is a distributed contract

The Python training process and ESP32 firmware must agree on input order, feature scaling, latent vector width, numeric type, and model version. A silent disagreement can produce plausible-looking but incorrect values. I designed the project around the fact that shipping only an .tflite file is insufficient: the scaler and decoder are also part of the release. For example, if the firmware scales an input to [0, 1] but the decoder expects training inputs normalized to [-1, 1], the request can be well-formed while the reconstruction is wrong. The fix is not “more training”; it is a reproducible artifact interface and parity tests across environments.

Interface property	Device responsibility	Server responsibility
Scaling	Apply exact training-time transform	Invert the agreed transform
Shape	Emit latent vector with correct width	Reject unexpected widths
Version	Identify compatible encoder release	Load matching decoder release
Numeric format	Serialize values predictably	Parse without implicit shape changes
Failure behavior	Retry or retain failed transmissions	Validate and report failed decodes

Why the model was split

Device-side encoding keeps the representation step close to the measurement and avoids hosting the full reconstruction model on a microcontroller. The trade-off is obvious: the device is now dependent on network transport and the backend must deploy a compatible decoder. This is a sensible experiment when the question is whether smaller transferred representations can justify the added complexity. But compressed latent size alone does not settle that question. A fair comparison measures complete serialized payload bytes, inference time, radio use, reconstruction error, and memory pressure on the same workload.

Quantifying compression without inventing a benchmark

I would calculate an on-wire compression ratio as: compression ratio = original serialized payload bytes / latent serialized payload bytes For a clearly hypothetical example, if the original payload occupied 100 bytes and the encoded request occupied 40 bytes, then the ratio would be 2.5:1, and the network payload would be 60% smaller. Those are example arithmetic values not results from this device. Device power savings might still be negative if inference consumes more energy than the radio saves.

Measurement	Required method	Published result
Reconstruction MAE / RMSE	Compare decoded and original held-out sensor traces	Not established in attached case study
On-wire byte ratio	Measure full real JSON/binary payload sizes	Not established
Encoder latency	Benchmark repeated inference on ESP32	Not established
Peak memory usage	Record tensor arena + stack + model footprint	Not established
Energy per sample	Measure encode and transmit under fixed conditions	Not established
Decoder reliability	Inject bad shape, mismatched version, network failures	Not established

Two implementation decisions I would defend in review

First: use an explicit edge/server split, not hidden remote inference. Even when the server reconstructs the result, the ESP32 must perform meaningful local model work. That exposes real deployment issues—operator support, exported model format, memory allocation, and firmware/model version coupling. Second: separate representation learning from confidentiality. The repository title references encryption, but an autoencoder's latent representation is not cryptographic encryption. If payload secrecy is needed, I would use authenticated transport and appropriately managed encryption keys, independent of model design. Compressibility and secrecy are different properties with different acceptance tests.

Failure analysis and hardening path

What goes wrong	Observable effect	Engineering response
Encoder/decoder versions differ	Reconstructed values drift	Versioned artifact manifest and compatibility check
Unsupported TFLite op on firmware	Inference cannot initialize	Operator audit and on-device smoke test
Latent payload is malformed	Decoder crashes or returns nonsense	Strict schema/shape validation
Wireless connectivity drops	Samples fail to reach server	Bounded local buffering and retry policy
Latent serialization is verbose	No transmission benefit	Compare binary and JSON encodings on real messages
Sensor characteristics shift	Reconstruction error increases	Drift monitoring and periodic calibration

Result and why it demonstrates engineering depth

This is a working architectural demonstration of split ML inference and its cross-platform interfaces: training, export, microcontroller runtime, network payload, cloud reconstruction, and storage integration. It exercises firmware, backend, cloud, and machine-learning integration in one project. The next milestone is a public benchmark with named ESP32 board, compiler/TFLite versions, representative readings, model size, and measured error/bytes/latency/energy. That would establish whether the approach is economically useful for a real sensor deployment; the current project establishes the design and implementation path.
